直線照明（拡散光）TLBシリーズ（耳無し）
商品コード
-
￥14,960 ～ ￥341,000
（税率10％込）
- カテゴリ
-
-
画像処理用LED照明器
-
直線照明
-
| 型式 | 発光色 | 発光部サイズ(mm) | 価格 | 外形図DXF | 外形図PDF | 詳細PDF |
|---|---|---|---|---|---|---|
| TLB45x25-22WD-4 | ○(白) | 35x19 | ￥16,060 | - | - | |
| TLB45x25-22RD-4 | ●(赤) | 35x19 | ￥14,960 | - | - | |
| TLB45x25-22GD-4 | ●(緑) | 35x19 | ￥17,490 | - | - | |
| TLB45x25-22BD-4 | ●(青) | 35x19 | ￥17,490 | - | - | |
| TLB45x25-22IR850D-4 | ●IR850 | 35x19 | ￥16,830 | - | - | |
| TLB45x25-22IR940D-4 | ●IR940 | 35x19 | ￥16,830 | - | - | |
| TLB85x25-22WD-4 | ○(白) | 75x19 | ￥17,820 | - | - | |
| TLB85x25-22RD-4 | ●(赤) | 75x19 | ￥16,830 | - | - | |
| TLB85x25-22GD-4 | ●(緑) | 75x19 | ￥19,360 | - | - | |
| TLB85x25-22BD-4 | ●(青) | 75x19 | ￥19,360 | - | - | |
| TLB85x25-22IR850D-4 | ●IR850 | 75x19 | ￥18,810 | - | - | |
| TLB85x25-22IR940D-4 | ●IR940 | 75x19 | ￥18,810 | - | - | |
| TLB85x25-22IR1050D-4 | ●IR1050 | 75x19 | ￥33,000 | - | - | |
| TLB85x25-22IR1200D-4 | ●IR1200 | 75x19 | ￥33,000 | - | - | |
| TLB85x25-22IR1300D-4 | ●IR1300 | 75x19 | ￥33,000 | - | - | |
| TLB85x25-22IR1450D-4 | ●IR1450 | 75x19 | ￥33,000 | - | - | |
| TLB85x25-22IR1550D-4 | ●IR1550 | 75x19 | ￥33,000 | - | - | |
| TLB85x25-22IR1650D-4 | ●IR1650 | 75x19 | ￥33,000 | - | - | |
| TLB125x25-22WD-4 | ○(白) | 115x19 | ￥20,020 | - | - | |
| TLB125x25-22RD-4 | ●(赤) | 115x19 | ￥18,260 | - | - | |
| TLB125x25-22GD-4 | ●(緑) | 115x19 | ￥22,000 | - | - | |
| TLB125x25-22BD-4 | ●(青) | 115x19 | ￥22,000 | - | - | |
| TLB125x25-22IR850D-4 | ●IR850 | 115x19 | ￥22,000 | - | - | |
| TLB125x25-22IR940D-4 | ●IR940 | 115x19 | ￥22,000 | - | - | |
| TLB165x25-22WD-4 | ○(白) | 155x19 | ￥22,110 | - | - | |
| TLB165x25-22RD-4 | ●(赤) | 155x19 | ￥20,020 | - | - | |
| TLB165x25-22GD-4 | ●(緑) | 155x19 | ￥24,750 | - | - | |
| TLB165x25-22BD-4 | ●(青) | 155x19 | ￥24,750 | - | - | |
| TLB165x25-22IR850D-4 | ●IR850 | 155x19 | ￥24,310 | - | - | |
| TLB165x25-22IR940D-4 | ●IR940 | 155x19 | ￥24,310 | - | - | |
| TLB165x25-22IR1050D-4 | ●IR1050 | 155x19 | ￥54,450 | - | - | |
| TLB165x25-22 IR1200D-4 | ●IR1200 | 155x19 | ￥54,450 | - | - | |
| TLB165x25-22IR1300D-4 | ●IR1300 | 155x19 | ￥54,450 | - | - | |
| TLB165x25-22IR1450D-4 | ●IR1450 | 155x19 | ￥54,450 | - | - | |
| TLB165x25-22IR1550D-4 | ●IR1550 | 155x19 | ￥54,450 | - | - | |
| TLB165x25-22IR1650D-4 | ●IR1650 | 155x19 | ￥54,450 | - | - | |
| TLB205x25-22WD-4 | ○(白) | 195x19 | ￥23,760 | - | - | |
| TLB205x25-22RD-4 | ●(赤) | 195x19 | ￥21,450 | - | - | |
| TLB205x25-22GD-4 | ●(緑) | 195x19 | ￥26,290 | - | - | |
| TLB205x25-22BD-4 | ●(青) | 195x19 | ￥26,290 | - | - | |
| TLB205x25-22IR850D-4 | ●IR850 | 195x19 | ￥26,180 | - | - | |
| TLB205x25-22IR940D-4 | ●IR940 | 195x19 | ￥26,180 | - | - | |
| TLB245x25-22WD-4 | ○(白) | 235x19 | ￥25,740 | - | - | |
| TLB245x25-22RD-4 | ●(赤) | 235x19 | ￥22,440 | - | - | |
| TLB245x25-22GD-4 | ●(緑) | 235x19 | ￥29,920 | - | - | |
| TLB245x25-22BD-4 | ●(青) | 235x19 | ￥29,920 | - | - | |
| TLB245x25-22IR850D-4 | ●IR850 | 235x19 | ￥28,380 | - | - | |
| TLB245x25-22IR940D-4 | ●IR940 | 235x19 | ￥28,380 | - | - | |
| TLB245x25-22IR1050D-4 | ●IR1050 | 235x19 | ￥75,350 | - | - | |
| TLB245x25-22IR1200D-4 | ●IR1200 | 235x19 | ￥75,350 | - | - | |
| TLB245x25-22IR1300D-4 | ●IR1300 | 235x19 | ￥75,350 | - | - | |
| TLB245x25-22IR1450D-4 | ●IR1450 | 235x19 | ￥75,350 | - | - | |
| TLB245x25-22IR1550D-4 | ●IR1550 | 235x19 | ￥75,350 | - | - | |
| TLB245x25-22IR1650D-4 | ●IR1650 | 235x19 | ￥75,350 | - | - | |
| TLB325x25-22WD-4 | ○(白) | 315x19 | ￥29,370 | - | - | |
| TLB325x25-22RD-4 | ●(赤) | 315x19 | ￥25,080 | - | - | |
| TLB325x25-22GD-4 | ●(緑) | 315x19 | ￥34,760 | - | - | |
| TLB325x25-22BD-4 | ●(青) | 315x19 | ￥34,760 | - | - | |
| TLB325x25-22IR850D-4 | ●IR850 | 315x19 | ￥32,230 | - | - | |
| TLB325x25-22IR940D-4 | ●IR940 | 315x19 | ￥32,230 | - | - | |
| TLB325x25-22IR1050D-4 | ●IR1050 | 315x19 | ￥97,680 | - | - | |
| TLB325x25-22IR1200D-4 | ●IR1200 | 315x19 | ￥97,680 | - | - | |
| TLB325x25-22IR1300D-4 | ●IR1300 | 315x19 | ￥97,680 | - | - | |
| TLB325x25-22IR1450D-4 | ●IR1450 | 315x19 | ￥97,680 | - | - | |
| TLB325x25-22IR1550D-4 | ●IR1550 | 315x19 | ￥97,680 | - | - | |
| TLB325x25-22IR1650D-4 | ●IR1650 | 315x19 | ￥97,680 | - | - | |
| TLB405x25-22WD-4 | ○(白) | 395x19 | ￥33,000 | - | - | |
| TLB405x25-22RD-4 | ●(赤) | 395x19 | ￥27,720 | - | - | |
| TLB405x25-22GD-4 | ●(緑) | 395x19 | ￥39,600 | - | - | |
| TLB405x25-22BD-4 | ●(青) | 395x19 | ￥39,600 | - | - | |
| TLB405x25-22IR850D-4 | ●IR850 | 395x19 | ￥36,520 | - | - | |
| TLB405x25-22IR940D-4 | ●IR940 | 395x19 | ￥36,520 | - | - | |
| TLB405x25-22IR1050D-4 | ●IR1050 | 395x19 | ￥119,350 | - | - | |
| TLB405x25-22IR1200D-4 | ●IR1200 | 395x19 | ￥119,350 | - | - | |
| TLB405x25-22 IR1300D-4 | ●IR1300 | 395x19 | ￥119,350 | - | - | |
| TLB405x25-22 IR1450D-4 | ●IR1450 | 395x19 | ￥119,350 | - | - | |
| TLB405x25-22 IR1550D-4 | ●IR1550 | 395x19 | ￥119,350 | - | - | |
| TLB405x25-22 IR1650D-4 | ●IR1650 | 395x19 | ￥119,350 | - | - | |
| TLB485x25-22WD-4 | ○(白) | 475x19 | ￥36,740 | - | - | |
| TLB485x25-22RD-4 | ●(赤) | 475x19 | ￥30,140 | - | - | |
| TLB485x25-22GD-4 | ●(緑) | 475x19 | ￥44,660 | - | - | |
| TLB485x25-22BD-4 | ●(青) | 475x19 | ￥44,660 | - | - | |
| TLB485x25-22IR850D-4 | ●IR850 | 475x19 | ￥40,480 | - | - | |
| TLB485x25-22IR940D-4 | ●IR940 | 475x19 | ￥40,480 | - | - | |
| TLB485x25-22IR1050D-4 | ●IR1050 | 475x19 | ￥141,350 | - | - | |
| TLB485x25-22IR1200D-4 | ●IR1200 | 475x19 | ￥141,350 | - | - | |
| TLB485x25-22 IR1300D-4 | ●IR1300 | 475x19 | ￥141,350 | - | - | |
| TLB485x25-22IR1450D-4 | ●IR1450 | 475x19 | ￥141,350 | - | - | |
| TLB485x25-22IR1550D-4 | ●IR1550 | 475x19 | ￥141,350 | - | - | |
| TLB485x25-22IR1650D-4 | ●IR1650 | 475x19 | ￥141,350 | - | - | |
| TLB565x25-22WD-4 | ○(白) | 555x19 | ￥40,260 | - | - | |
| TLB565x25-22RD-4 | ●(赤) | 555x19 | ￥32,780 | - | - | |
| TLB565x25-22GD-4 | ●(緑) | 555x19 | ￥49,500 | - | - | |
| TLB565x25-22BD-4 | ●(青) | 555x19 | ￥49,500 | - | - | |
| TLB565x25-22IR850D-4 | ●IR850 | 555x19 | ￥44,440 | - | - | |
| TLB565x25-22IR940D-4 | ●IR940 | 555x19 | ￥44,440 | - | - | |
| TLB565x25-22IR1050D-4 | ●IR1050 | 555x19 | ￥163,680 | - | - | |
| TLB565x25-22IR1200D-4 | ●IR1200 | 555x19 | ￥163,680 | - | - | |
| TLB565x25-22IR1300D-4 | ●IR1300 | 555x19 | ￥163,680 | - | - | |
| TLB565x25-22IR1450D-4 | ●IR1450 | 555x19 | ￥163,680 | - | - | |
| TLB565x25-22IR1550D-4 | ●IR1550 | 555x19 | ￥163,680 | - | - | |
| TLB565x25-22IR1650D-4 | ●IR1650 | 555x19 | ￥163,680 | - | - | |
| TLB645x25-22WD-4 | ○(白) | 635x19 | ￥43,890 | - | - | |
| TLB645x25-22RD-4 | ●(赤) | 635x19 | ￥35,420 | - | - | |
| TLB645x25-22GD-4 | ●(緑) | 635x19 | ￥54,560 | - | - | |
| TLB645x25-22BD-4 | ●(青) | 635x19 | ￥54,560 | - | - | |
| TLB645x25-22IR850D-4 | ●IR850 | 635x19 | ￥48,510 | - | - | |
| TLB645x25-22IR940D-4 | ●IR940 | 635x19 | ￥48,510 | - | - | |
| TLB645x25-22IR1050D-4 | ●IR1050 | 635x19 | ￥186,450 | - | - | |
| TLB645x25-22IR1200D-4 | ●IR1200 | 635x19 | ￥186,450 | - | - | |
| TLB645x25-22IR1300D-4 | ●IR1300 | 635x19 | ￥186,450 | - | - | |
| TLB645x25-22IR1450D-4 | ●IR1450 | 635x19 | ￥186,450 | - | - | |
| TLB645x25-22IR1550D-4 | ●IR1550 | 635x19 | ￥186,450 | - | - | |
| TLB645x25-22IR1650D-4 | ●IR1650 | 635x19 | ￥186,450 | - | - | |
| TLB725x25-22WD-4 | ○(白) | 715x19 | ￥47,520 | - | - | |
| TLB725x25-22RD-4 | ●(赤) | 715x19 | ￥37,950 | - | - | |
| TLB725x25-22GD-4 | ●(緑) | 715x19 | ￥59,400 | - | - | |
| TLB725x25-22BD-4 | ●(青) | 715x19 | ￥59,400 | - | - | |
| TLB725x25-22IR850D-4 | ●IR850 | 715x19 | ￥52,580 | - | - | |
| TLB725x25-22IR940D-4 | ●IR940 | 715x19 | ￥52,580 | - | - | |
| TLB725x25-22IR1050D-4 | ●IR1050 | 715x19 | ￥208,450 | - | - | |
| TLB725x25-22IR1200D-4 | ●IR1200 | 715x19 | ￥208,450 | - | - | |
| TLB725x25-22IR1300D-4 | ●IR1300 | 715x19 | ￥208,450 | - | - | |
| TLB725x25-22IR1450D-4 | ●IR1450 | 715x19 | ￥208,450 | - | - | |
| TLB725x25-22IR1550D-4 | ●IR1550 | 715x19 | ￥208,450 | - | - | |
| TLB725x25-22IR1650D-4 | ●IR1650 | 715x19 | ￥208,450 | - | - | |
| TLB805x25-22WD-4 | ○(白) | 795x19 | ￥51,260 | - | - | |
| TLB805x25-22RD-4 | ●(赤) | 795x19 | ￥40,480 | - | - | |
| TLB805x25-22GD-4 | ●(緑) | 795x19 | ￥64,460 | - | - | |
| TLB805x25-22BD-4 | ●(青) | 795x19 | ￥64,460 | - | - | |
| TLB805x25-22IR850D-4 | ●IR850 | 795x19 | ￥56,760 | - | - | |
| TLB805x25-22IR940D-4 | ●IR940 | 795x19 | ￥56,760 | - | - | |
| TLB805x25-22IR1050D-4 | ●IR1050 | 795x19 | ￥231,880 | - | - | |
| TLB805x25-22IR1200D-4 | ●IR1200 | 795x19 | ￥231,880 | - | - | |
| TLB805x25-22IR1300D-4 | ●IR1300 | 795x19 | ￥231,880 | - | - | |
| TLB805x25-22IR1450D-4 | ●IR1450 | 795x19 | ￥231,880 | - | - | |
| TLB805x25-22IR1550D-4 | ●IR1550 | 795x19 | ￥231,880 | - | - | |
| TLB805x25-22IR1650D-4 | ●IR1650 | 795x19 | ￥231,880 | - | - | |
| TLB1205x25-22WD-4 | ○(白) | 1195x19 | ￥73,480 | - | - | |
| TLB1205x25-22RD-4 | ●(赤) | 1195x19 | ￥58,080 | - | - | |
| TLB1205x25-22GD-4 | ●(緑) | 1195x19 | ￥96,690 | - | - | |
| TLB1205x25-22BD-4 | ●(青) | 1195x19 | ￥96,690 | - | - | |
| TLB1205x25-22IR850D-4 | ●IR850 | 1195x19 | ￥81,400 | - | - | |
| TLB1205x25-22IR940D-4 | ●IR940 | 1195x19 | ￥81,400 | - | - | |
| TLB1205x25-22IR1050D-4 | ●IR1050 | 1195x19 | ￥341,000 | - | - | |
| TLB1205x25-22IR1200D-4 | ●IR1200 | 1195x19 | ￥341,000 | - | - | |
| TLB1205x25-22IR1300D-4 | ●IR1300 | 1195x19 | ￥341,000 | - | - | |
| TLB1205x25-22IR1450D-4 | ●IR1450 | 1195x19 | ￥341,000 | - | - | |
| TLB1205x25-22IR1550D-4 | ●IR1550 | 1195x19 | ￥341,000 | - | - | |
| TLB1205x25-22IR1650D-4 | ●IR1650 | 1195x19 | ￥341,000 | - | - |
※ カスタム・特注はアイテックシステム営業までご相談ください。
※ 外形図、取扱説明書のダウンロードには、ログインする必要がありますので、会員登録をお願い致します。

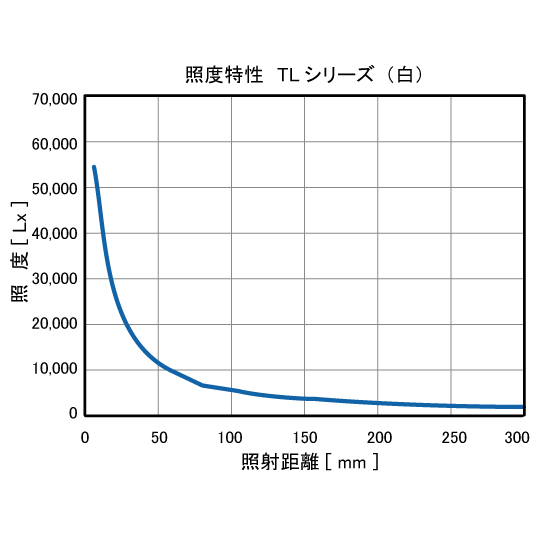

○直線拡散光照明は、高照度と低価格を両立させた照明

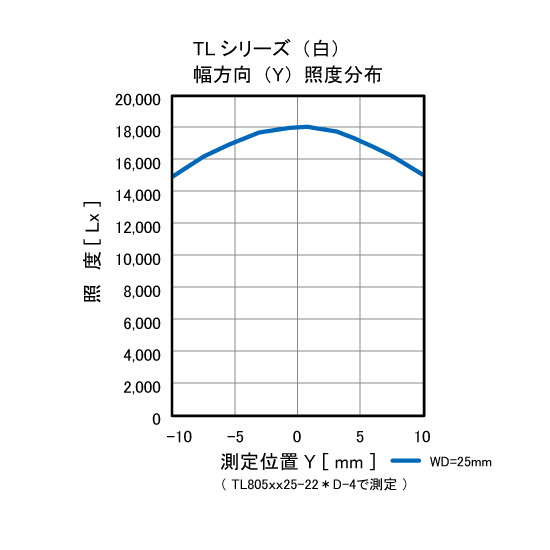

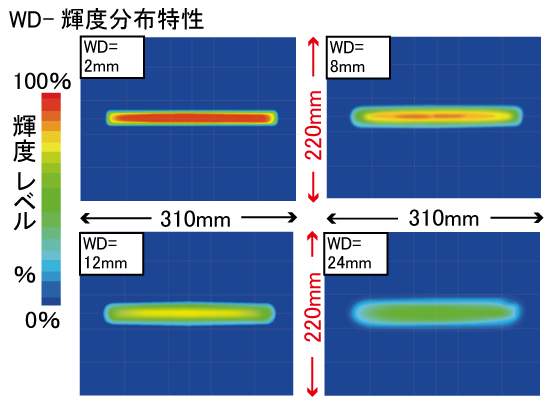

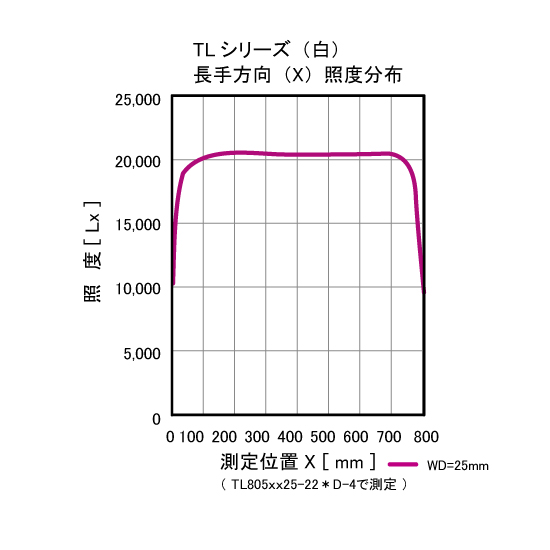

○高照度な拡散光を均一に照射でき、透過や反射照明用としてムラが少なく広範囲を照らす用途に適します
○低価格なので、装置のトータルコストの低減に大きく貢献可能

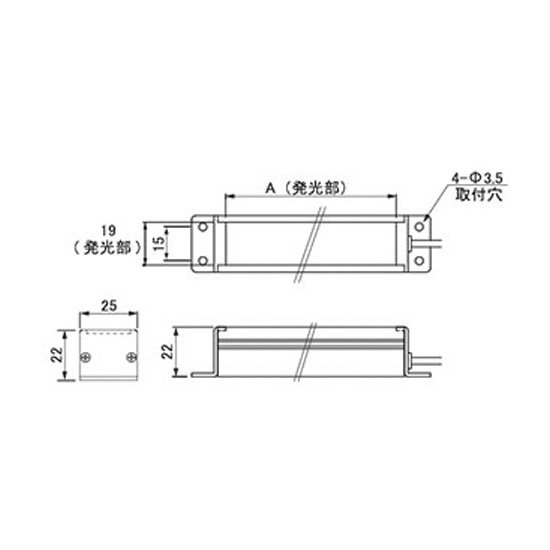

○短手面の取付耳有りTLAシリーズまたは、取付耳無しTLBシリーズの2機種から設置場所に合わせて選定可
○用途:文字認識・キズ検査や透過・異物・汚れ・穴検査に最適。定電流電源TPDCと組合せて、ラインカメラ用にも使用可
○照明方法:透過・反射・拡散光照明と幅広い用途に適します
○照明器のケーブル長は0.5ｍです。延長ケーブルが必要な場合は別途ご選定ください。
○発光色：緑は在庫限りとなります。
